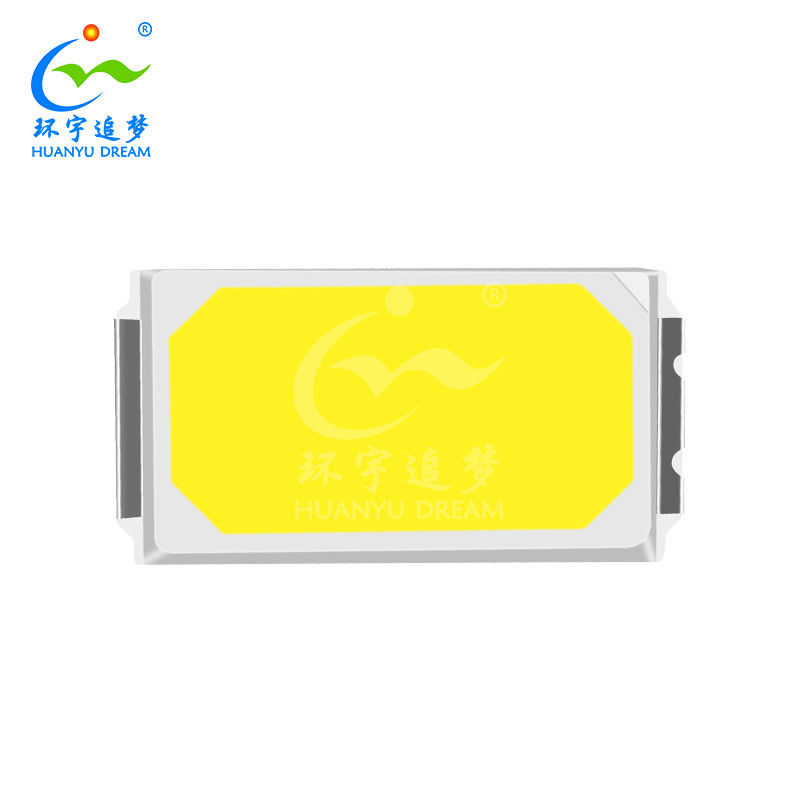

Name: 5730 SMD LED Chip 0.5W 6500K High CRI 96 120 Degree
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-5730W65L60-1S
Price: 12.20 USD
Availability: InStock

Λεπτομέρειες για το προϊόν

Place of Origin: China

Μάρκα: HuanYu Dream

Πιστοποίηση: Rohs

Model Number: HY-5730W65L60-1S

Όροι πληρωμής και αποστολής

Minimum Order Quantity: Negotiable

Τιμή: Διαπραγματεύσιμα

Packaging Details: 4k/Reel

Delivery Time: 7-9 Work Days

Payment Terms: T/T,Paypal,Ali Pay

Supply Ability: 100KKpcs/Month

Βρείτε την καλύτερη τιμή

Λεπτομέρειες για το προϊόν

Περιγραφή του προϊόντος

Επισημαίνω:
                                                                                                                                                                                                                                                                                                                5730 SMD LED chip 0.5W high CRI, 5730 SMD LED 6500K daylight white, 5730 LED chip 120 degree beam


Type:	5730 SMD Chip LED	Power:	0.5W
Current:	150mA	Lumen:	60-65LM
Color:	6500K	CRI:	96
View Angle:	120degree	Substrate:	PCT

Type:	5730 SMD Chip LED
Power:	0.5W
Current:	150mA
Lumen:	60-65LM
Color:	6500K
CRI:	96
View Angle:	120degree
Substrate:	PCT

5730 SMD LED Chip 0.5W 6500K High CRI 96 120 Degree

High CRI 96Ra SMD LED 5730 CHIP 3.0-3.2V 2700-6500K 50-55LM SMD LED

Product Specifications

Attribute	Value
Type	5730 SMD Chip LED
Power	0.5W
Current	150mA
Lumen	60-65LM
Color	6500K
CRI	96
View Angle	120°
Substrate	PCT

Key Features

High CRI >96Ra
3-year warranty
Ideal for educational lighting, health lighting, plant lighting, commercial lighting, and automotive lighting applications

Technical Specifications

Current	Voltage	CCT	CRI	TYP Flux (lm)	Part Number
150mA	3.0-3.2V	2700K	>96Ra	50-55LM	HY-5730W27L50-1S
150mA	3.0-3.2V	6500K	>96Ra	60-65LM	HY-5730W65L60-1S

Note: Available in 2700K, 3000K, 4000K, 5000K, and 6000K color temperatures

Electrical-Optical Characteristics (Ta=25℃)

Type	Symbol	Test Condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	IF=150mA	3.0	--	3.2	V
6000K-6500K	φ	IF=150mA	60	--	65	Lm
Reverse Current	IR	VR=5V	--	--	1	uA
Viewing Angle	2θ1/2	IF=150mA		120		Deg
Color Rendering Index	CRI	IF=150mA	96	--	--	--
Thermal resistance	Rth(j-s)	IF=150mA	--	--	28	℃/W

Measurement

Frequently Asked Questions

Can you provide free samples?

We can usually provide some free samples of SMD LED chips.

How long does delivery take?

Delivery time depends on your shipping method. For urgent needs, we recommend FedEx, DHL or UPS. For more economical options, Alibaba shipping typically takes 10-20 working days.

Do you support customization?

Yes, we can customize products according to your specific parameters and requirements.

For any additional questions, please feel free to contact us.
